Spring Balancers

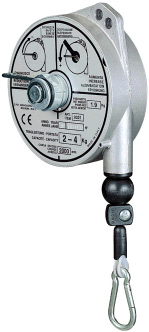

9320 - 9323 Balancer
1 - 8 kg 2m Stroke Aluminium Body
- Rugged construction, die cast aluminium body
- Stainless steel cable
- Simple load adjustment
- Auxiliary safety suspension point
- Safety device against load falling due to spring breakage (>3kg).
- Adjustable stroke limiting clamp
- Cable guide in low friction material
- Inert spring drum assembly
- Polyamide thimble
Item |
9320 |
9321 |
9322 |
9323 |
|
Capacity |
kg |
1 - 2.5 |
2 - 4 |
4 - 6 |
6 - 8 |
Stroke |
mm |
2000 |
2000 |
2000 |
2000 |
Net weight |
kg |
2 |
2 |
2.3 |
2.5 |
Gross weight |
kg |
2.1 |
2.1 |
2.4 |
2.6 |
Package dimensions |
mm |
200/155/90 |
200/155/90 |
200/155/90 |
200/155/90 |
