Spring Balancers

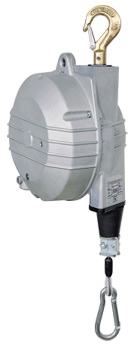

9354 - 9359 Balancer
2 - 10 kg 2.5m Stroke Load locking
- Ribbed and sealed die cast aluminium alloy.
- Stainless steel cable
- Worm screw load adjustment
- Auxiliary safety suspension point
- Safety device against load falling due to spring breakage (>3kg).
- Upper rotary suspension, ball bearing mounted with safety hook
- Locking device to lock the load at any height
- Adjustable stroke limiting clamp
- Cable guide in low friction material
- Inert spring drum assembly
- Polyamide thimble
Item |
9354 |
9355 |
9356 |
9357 |
9358 |
9359 |
|
Capacity |
kg |
4 - 7 |
7 - 10 |
10 - 14 |
14 - 18 |
18 - 22 |
22 - 25 |
Stroke |
mm |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
Net weight |
kg |
5 |
5.5 |
5.5 |
6.5 |
6 |
6.6 |
Gross weight |
kg |
6.5 |
7 |
7 |
8 |
7.5 |
8.1 |
Package dimensions |
mm |
196x485x139 |
197x485x139 |
198x485x139 |
199x485x139 |
200x485x139 |
201x485x139 |
