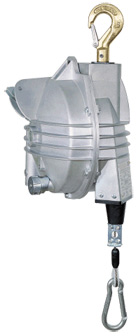

9361 - 9369 Balancer
10 - 105 kg 2m Stroke Taper drum
- Ribbed and sealed die castconstruction in aluminium.
- Stainless steel cable
- Taper drum rotating on ball bearings.
- Worm screw load adjustment
- Auxiliary safety suspension point
- Safety device against load dropping due to spring breakage (>3kg).
- Upper rotary suspension, ball bearing mounted with safety hook
- Locking device to lock the load at any height
- Adjustable stroke limiting clamp
- Cable guide in low friction material
- Inert spring drum assembly
- Polyamide thimble
Item |
9361 |
9362 |
9363 |
9364 |
9365 |
9366 |
9367 |
9368 |
9369 |
|
Capacity |
kg |
10 - 15 |
15 - 20 |
20 - 25 |
25 - 30 |
30 - 35 |
35 - 45 |
45 - 55 |
55 - 65 |
65 - 75 |
Stroke |
mm |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
Net weight |
kg |
10.3 |
10.6 |
11.2 |
11.5 |
11.8 |
12.4 |
12.5 |
13.6 |
14.5 |
Gross weight |
kg |
12.3 |
12.6 |
13.2 |
13.5 |
13.8 |
14.4 |
14.5 |
15.6 |
16.5 |
Package dimensions |
mm |
445 |
445 |
445 |
445 |
445 |
445 |
445 |
445 |
445 |
