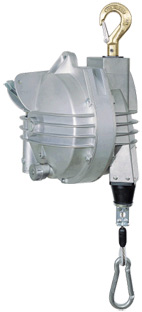

9370 - 9371 Balancer
75 - 105 kg 2.5m Stroke
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel cable
- Adjustable capacity by means of a worm screw
- Auxiliary safety suspension
- Safety device against load dropping due to the spring breakage (>3kg).
- Upper rotary suspension with safety hook
- Locking device to lock the load at any height
- Adjustable stroke limiting device
- Taper drum rotating on ball bearings
- Cable guide in antifriction material
- Rotary upper hook with ball bearing
- Inert spring drum assembly
- Polyamides thimble
Item |
9370 |
9371 |
|
Capacity |
kg |
75 - 90 |
90 - 105 |
Stroke |
mm |
2000 |
2000 |
Net weight |
kg |
17.3 |
18 |
Gross weight |
kg |
19 |
20 |
Package dimensions |
mm |
455/270/280 |
455/270/280 |
