Spring Balancers

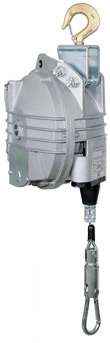

9401 - 9405 Balancer
15 - 180kg 2.5m Stroke - Large diameter spring
- Ribbed and sealed die castconstruction in aluminium.
- Stainless steel cable
- Taper drum rotating on ball bearings.
- Worm screw load adjustment
- Auxiliary safety suspension point
- Safety device against load dropping due to spring breakage (>3kg).
- Upper rotary suspension, ball bearing mounted with safety hook
- Locking device to lock the load at any height
- Adjustable stroke limiting clamp
- Cable guide in low friction material
- Inert spring drum assembly
- Polyamide thimble
Item |
9401 |
9402 |
9403 |
9404 |
9405 |
|
Capacity |
kg |
15 - 20 |
20 - 30 |
30 - 40 |
40 - 50 |
50 - 60 |
Stroke |
mm |
2500 |
2500 |
2500 |
2500 |
2500 |
Net weight |
kg |
19 |
29.8 |
20.8 |
23.9 |
25.4 |
Gross weight |
kg |
22.2 |
23 |
24 |
27.1 |
28.6 |
Package dimensions |
mm |
600/320/330 |
600/320/330 |
600/320/330 |
600/320/330 |
600/320/330 |
