Spring Balancers

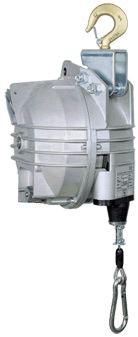

9411 - 9414 Balancer
60 - 100kg
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel cable
- Adjustable capacity by means of a worm screw
- Auxiliary safety suspension
- Safety device against load dropping due to the spring breakage (>3kg).
- Upper rotary suspension with safety hook
- Locking device to lock the load at any height
- Adjustable stroke limiting device
- Taper drum rotating on ball bearings
- Cable guide in antifriction material
- Rotary upper hook with ball bearing
- Lining up upper hook
- Visible cable for inspection
- Inert spring drum assembly
ITEM |
9411 |
9412 |
9413 |
9414 |
|
Capacity |
kg |
60-70 |
70-80 |
80-90 |
90-100 |
Stroke |
mm |
2500 |
2500 |
2500 |
2500 |
Net weight |
kg |
26.8 |
27.8 |
28.8 |
30 |
Gross weight |
kg |
30 |
31 |
32 |
32 |
|
Package dimensions |
mm |
600 |
600 |
600 |
600 |
320 |
320 |
320 |
320 |
||
330 |
330 |
330 |
330 |
||
