Spring Balancers

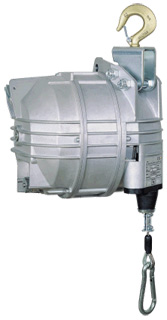

9422 - 9426 Balancer
100 - 180kg
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel cable
- Adjustable capacity by means of a worm screw
- Auxiliary safety suspension
- Safety device against load dropping due to the spring breakage (>3kg).
- Upper rotary suspension with safety hook
- Locking device to lock the load at any height
- Adjustable stroke limiting device
- Taper drum rotating on ball bearings
- Cable guide in antifriction material
- Rotary upper hook with ball bearing
- Lining up upper hook
- Visible cable for inspection
- Inert spring drum assembly
ITEM |
9422 |
9423 |
9424 |
9425 |
9426 |
|
Capacity |
kg |
100-120 |
120-140 |
130-150 |
140-160 |
160-180 |
Stroke |
mm |
2500 |
2500 |
2500 |
2500 |
2500 |
Net weight |
kg |
38.7 |
41.8 |
44.5 |
48 |
49 |
Gross weight |
kg |
42.5 |
45.6 |
48.3 |
51.8 |
52.8 |
|
Package dimensions |
mm |
600 |
600 |
600 |
600 |
600 |
320 |
320 |
320 |
320 |
320 |
||
420 |
420 |
420 |
420 |
420 |
||
