Spring Balancers

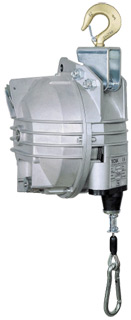

9431 - 9433 Balancer
15 - 35kg 3m Stroke - Largest spring diameter
- Ribbed and sealed die castconstruction in aluminium.
- Stainless steel cable
- Taper drum rotating on ball bearings.
- Worm screw load adjustment
- Auxiliary safety suspension point
- Safety device against load dropping due to spring breakage (>3kg).
- Upper rotary suspension, ball bearing mounted with safety hook
- Locking device to lock the load at any height
- Adjustable stroke limiting clamp
- Cable guide in low friction material
- Inert spring drum assembly
- Polyamide thimble
Item |
9431 |
9432 |
9433 |
|
Capacity |
kg |
15 - 20 |
20 - 25 |
25 - 35 |
Stroke |
mm |
3000 |
3000 |
3000 |
Net weight |
kg |
19.1 |
19.9 |
20.9 |
Gross weight |
kg |
22.3 |
23.1 |
24.1 |
Package dimensions |
mm |
600/320/330 |
600/320/330 |
600/320/330 |
